RCCBs Type AC

Type AC residual current

Regulation 531.3.3 Tripping on:

  • 50Hz sinusoidal AC

Note: Type AC RCDs are not suitable for use in circuits powering electronically controlled equipment.

RCD selection and application RCCB accessories Technical data

Note: Type AC Selective / Time delay not available – use Type A as a direct replacement

RCCB Selective/Time-delay click here

General Non-delay characteristics for final circuits. Ordering reference: see below

Product Standard: EN61008-1

Approvals: VDE

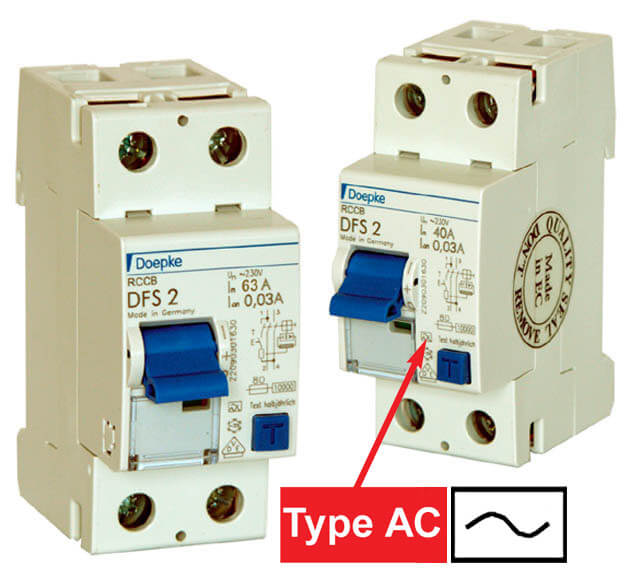

2 pole 230V RCCB
 Time/Current characteristic: General Non-delay
Modules Poles Amps Sensitivity Reference
      2            2          16          10mA       DFS2-016-2/0.01-AC
      2            2          16          30mA       DFS2-016-2/0.03-AC
      2            2          16        100mA       DFS2-016-2/0.10-AC
      2            2          16        300mA       DFS2-016-2/0.30-AC
      2            2          25          10mA       DFS2-025-2/0.01-AC
      2            2          25          30mA       DFS2-025-2/0.03-AC
      2            2          25        100mA       DFS2-025-2/0.10-AC
      2            2          25        300mA       DFS2-025-2/0.30-AC

      2            2          40          10mA       DFS2-040-2/0.01-AC
      2            2          40          30mA       DFS2-040-2/0.03-AC
      2            2          40        100mA       DFS2-040-2/0.10-AC
      2            2          40        300mA       DFS2-040-2/0.30-AC

      2            2          63          30mA       DFS2-063-2/0.03-AC
      2            2          63        100mA       DFS2-063-2/0.10-AC
      2            2          63        300mA       DFS2-063-2/0.30-AC
      2            2          63        500mA       DFS2-063-2/0.50-AC
      2            2          80          30mA       DFS2-080-2/0.03-AC
      2            2          80        100mA       DFS2-080-2/0.10-AC
      2            2          80        300mA       DFS2-080-2/0.30-AC

      2            2        100          30mA       DFS2-100-2/0.03-AC
      2            2        100        100mA       DFS2-100-2/0.10-AC
      2            2        100        300mA       DFS2-100-2/0.30-AC

      2            2        125          30mA       DFS2-125-2/0.03-AC
      2            2        125        100mA       DFS2-125-2/0.10-AC
      2            2        125        300mA       DFS2-125-2/0.30-AC
      2            2        125        500mA       DFS2-125-2/0.50-AC

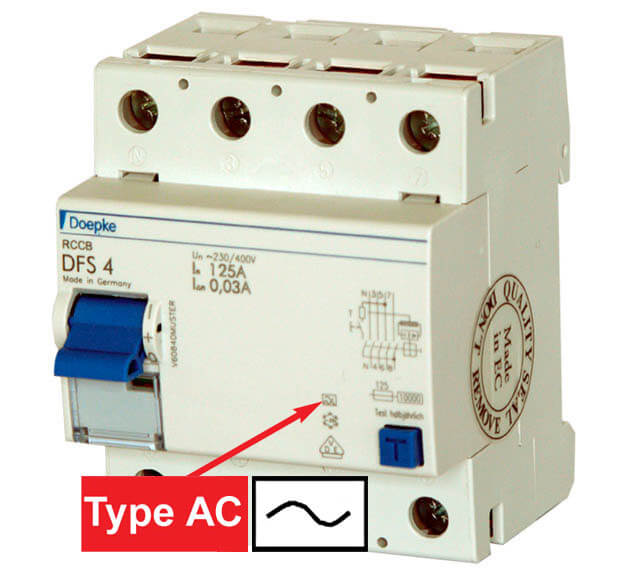

4 pole 100%Vd>
   Time/Current characteristic: General Non-delay
 Modules     Poles       Amps        Sensitivity                 Reference
      4            4          16          10mA       DFS4-016-4/0.01-AC
      4            4          16          30mA       DFS4-016-4/0.03-AC

      4            4          16        300mA       DFS4-016-4/0.30-AC

      4            4          25          30mA       DFS4-025-4/0.03-AC
      4            4          25        100mA       DFS4-025-4/0.10-AC
      4            4          25        300mA       DFS4-025-4/0.30-AC
      4            4          25        500mA       DFS4-025-4/0.50-AC

      4            4          40          30mA       DFS4-040-4/0.03-AC
      4            4          40        100mA       DFS4-040-4/0.10-AC
      4            4          40        300mA       DFS4-040-4/0.30-AC
      4            4          40        500mA       DFS4-040-4/0.50-AC
      4            4          63          30mA       DFS4-063-4/0.03-AC
      4            4          63        100mA       DFS4-063-4/0.10-AC
      4            4          63        300mA       DFS4-063-4/0.30-AC
      4            4          63        500mA       DFS4-063-4/0.50-AC
      4            4          80          30mA       DFS4-080-4/0.03-AC
      4            4          80        100mA       DFS4-080-4/0.10-AC
      4            4          80        300mA       DFS4-080-4/0.30-AC
      4            4          80        500mA       DFS4-080-4/0.50-AC
      4            4        100          30mA       DFS4-100-4/0.03-AC
      4            4        100        100mA       DFS4-100-4/0.10-AC
      4            4        100        300mA       DFS4-100-4/0.30-AC
      4            4        100        500mA       DFS4-100-4/0.50-AC
      4            4        125          30mA       DFS4-125-4/0.03-AC
      4            4        125        100mA       DFS4-125-4/0.10-AC
      4            4        125        300mA       DFS4-125-4/0.30-AC
      4            4        125        500mA       DFS4-125-4/0.50-AC
