Power Switching Modular Contactors

Suitable for the control of general heating and lighting loads in AC installations.

  • 230V 50Hz coil voltage.
  • Contact configurations refer to the ordering data.
  • Selection based on the type of load, refer to the technical data for specific duty ratings.

Switchgear wiring accessories Technical data

Ordering reference: see below

Product Standard: EN60947-4

HS20 -** Contactor 230V 50Hz coil (Ith = 20A)
  Modules            *Poles	             Switching	           Reference
                        NO      NC             Voltage
     1		              2	     230                  HS 20-02
     1	             1	      1	     230	             HS 20-11
     1	             2		             230	             HS 20-20

HS20-11

HS25 -** Contactor 230V 50Hz coil (Ith = 25A)
  Modules            *Poles	             Switching	           Reference
                        NO      NC             Voltage
     2		              4	      230	           HS 25-04
     2	             2	      2	      230	           HS 25-22
     2	             3	      1	      230	           HS 25-31
     2	             4		              230	           HS 25-40

HS25-31

HS40-** Contactor 230V 50Hz coil (Ith = 40A)
  Modules            *Poles	             Switching	           Reference
                        NO      NC             Voltage
     3		              4	      230	           HS 40-04
     3	             2	      2	      230	           HS 40-22
     3	             3	      1	      230	           HS 40-31
     3	             4		              230	           HS 40-40

2 2 230 HS 40-20S

HS40-04 / HS40-20S

HS63-** Contactor 230V 50Hz coil (Ith = 63A)
  Modules            *Poles	             Switching	           Reference
                        NO      NC             Voltage
     3	            2	      2	      230	           HS 63-22
     3	            3	      1	      230	           HS 63-31
     3	            4		              230	           HS 63-40

2 2 230 HS 63-20S

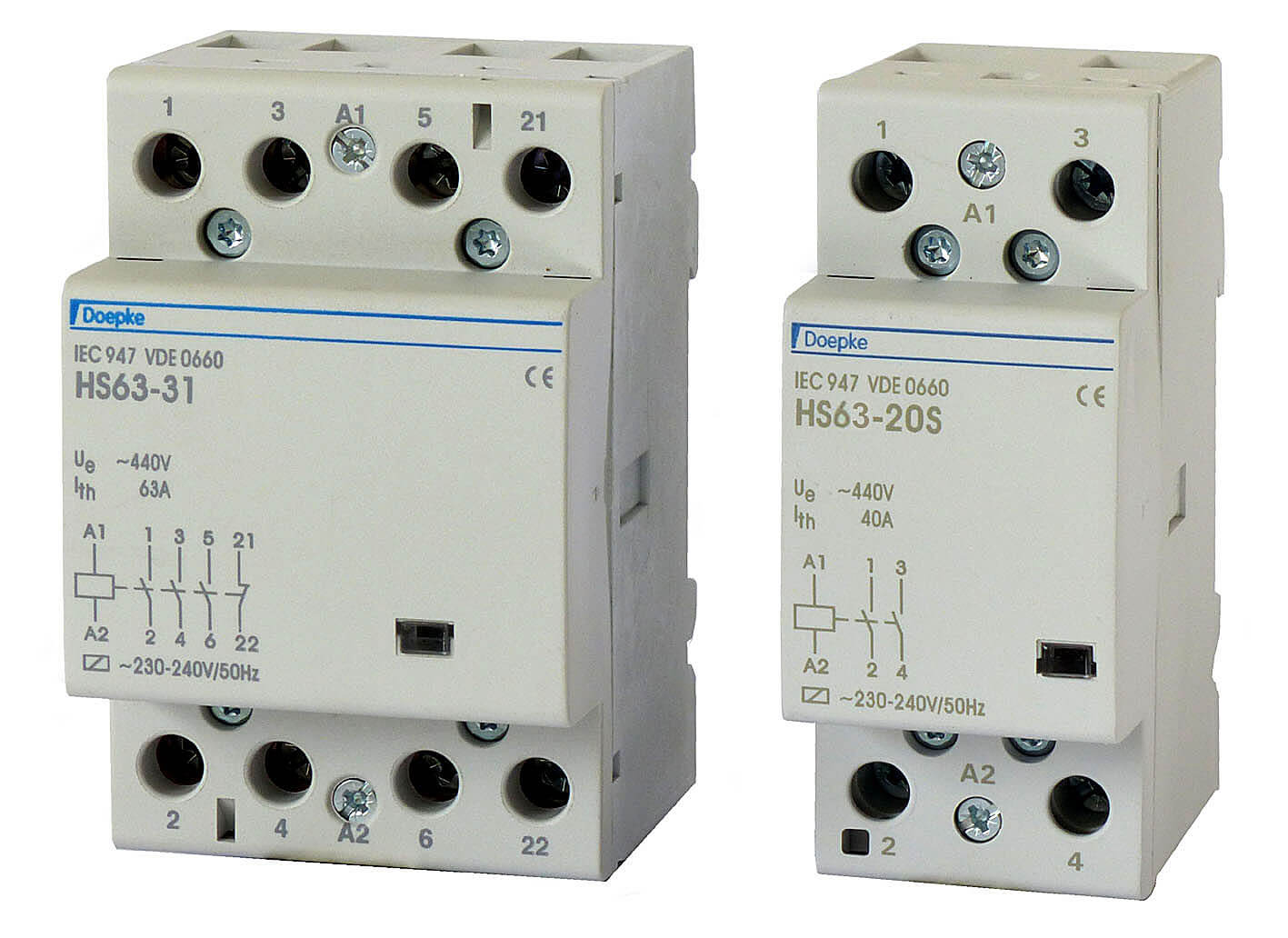

HS63-31 / HS-63-20S
